6ES7153-2BA82-0XB0 ET200M, ANSCHALT. IM153-2 HF OUTDOOR

6ES7153-2BA82-0XB0 ET200M, ANSCHALT. IM153-2 HF OUTDOOR

Product Code: 6ES7153-2BA82-0XB0

Availability: In Stock

Price: $309.28
Qty:
Add to Wish List
Add to Compare


Artikelnummer 6ES7153-2BA82-0XB0
SIMATIC DP, INTERFACE DP/PA-LINK A. ET200M IM153-2 HF FOR EXPANDED TEMPERATURE RANGE FOR MAX. 12 S7-300 MODULES, WITH REDUNDANCY, TIME STAMPING FIT FOR ISOCHRONE MODE NEW FEATURES: 12 MODULES / STATION SLAVE INITIATIVE FOR SWITCHES AND DRIVEES EXTENDED DATA FOR HART SECON- DARY VARIABLES OPERATON WITH 64PT MODULES EXTENDES TIMESTAMPS WITH 32 SIGNALS / SLOT
General information
Vendor identification (VendorID) 801Eh
Supply voltage
24 V DC Yes
permissible range, lower limit (DC) 20.4 V
permissible range, upper limit (DC) 28.8 V
permissible range (ripple included), lower limit (DC) 20.4 V
permissible range (ripple included), upper limit (DC) 28.8 V
External protection for supply cables (recommendation) 2,5 A
Mains buffering
● Mains/voltage failure stored energy time 5 ms
Input current
Current consumption, max. 650 mA
Inrush current, typ. 3 A
I²t 0.1 A²·s
Output voltage
Rated value (DC) 5 V
Output current
for backplane bus (5 V DC), max. 1.5 A
Power losses
Power loss, typ. 5.5 W
Address area
Addressing volume
● Inputs 244 byte
● Outputs 244 byte
Hardware configuration
Number of modules per DP slave interface, max. 12
Time stamping
Accuracy 1 ms; 1ms at up to 8 modules; 10ms at up to 12 modules
Number of message buffers 15
Messages per message buffer 20
Number of stampable digital inputs, max. 128; Max. 128 signals/station; max. 32 signals/slot
Time format RFC 1119
Time resolution 0.466 ns
Time interval for transmitting the message buffer if a message is present 1 000 ms
Time stamp on signal change rising / falling edge as signal entering or exiting
Interfaces
Interface physics, RS 485 Yes
Interface physics, FOC No
PROFIBUS DP
● Node addresses 1 to 125 permitted
● Automatic detection of transmission speed Yes
● PROFIBUS DP, output current, max. 70 mA
● Transmission rate, max. 12 Mbit/s
● Transmission procedure RS 485
● SYNC capability Yes
● FREEZE capability Yes
● Direct data exchange (slave-to-slave communication) Yes; Sender
● PROFIBUS DP 9-pin sub D
1st interface
DP slave
● GSD file SI0480E.GSG
● Automatic baud rate search Yes
Communication functions
Bus protocol/transmission protocol PROFIBUS DP to EN 50170
Isolation
Isolation checked with Isolation voltage 500 V
Degree and class of protection
Degree of protection to EN 60529
● IP20 Yes
Ambient conditions
Operating temperature
● Min. -25 °C
● max. 60 °C
Air pressure
● Operating altitude above sea level, max. 3 000 m
Configuration
Configuration software
● STEP 7 Yes; STEP 7 / COM PROFIBUS / non-Siemens tools via GSD file

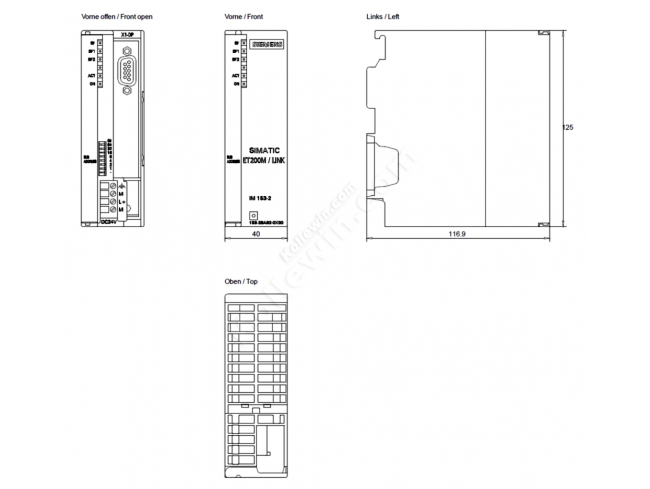

Dimensions
Width 40 mm
Height 125 mm
Depth 117 mm
Weights
Weight, approx. 360 g
last modified: 13.10.2014
