6ES7141-1BF41-0XA0 ET200X, EM141, 8DI, DC24V

6ES7141-1BF41-0XA0 ET200X, EM141, 8DI, DC24V

Product Code: 6ES7141-1BF41-0XA0

Availability: In Stock

Price: $121.93
Qty:
Add to Wish List
Add to Compare

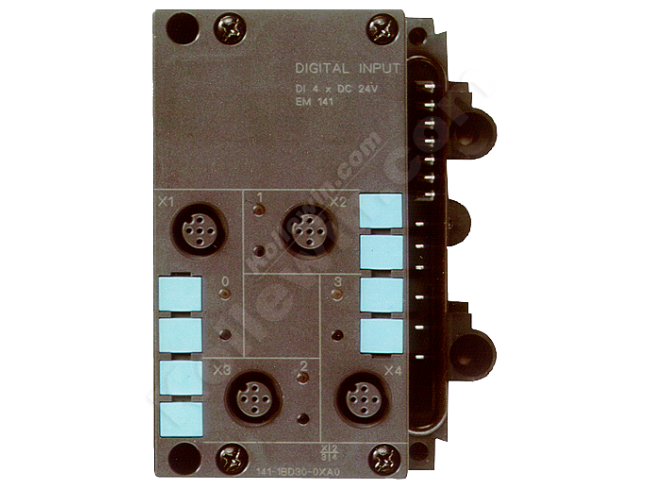

Digital input module EM 141

-
SIMATIC DP, EXPANSION MODULE EM 141 FOR ET 200X, IP66/67 8 DI 24V DC, 5-PIN, M12, WITH SINGLE-CHANNEL PORT, 1 CHANNEL PER M12 CONNECTOR, FOR ALL BASIC MODULES
Input current
from backplane bus 5 V DC, max. 10 mA
Power losses
Power loss, typ. 1.5 W
Digital inputs
Number of digital inputs 8
Input characteristic curve in accordance with IEC 61131, type 1 Yes
Input voltage
Rated value, DC 24 V
for signal "0" -3 to +5 V
for signal "1" 13 to 30 V
Input delay (for rated value of input voltage)
for standard inputs
at "0" to "1", min. 1.2 ms
at "0" to "1", max. 4.8 ms
Cable length
Cable length unshielded, max. 30 m
Encoder
Connectable encoders
2-wire sensor Yes
Permissible quiescent current (2-wire sensor), max. 1.5 mA

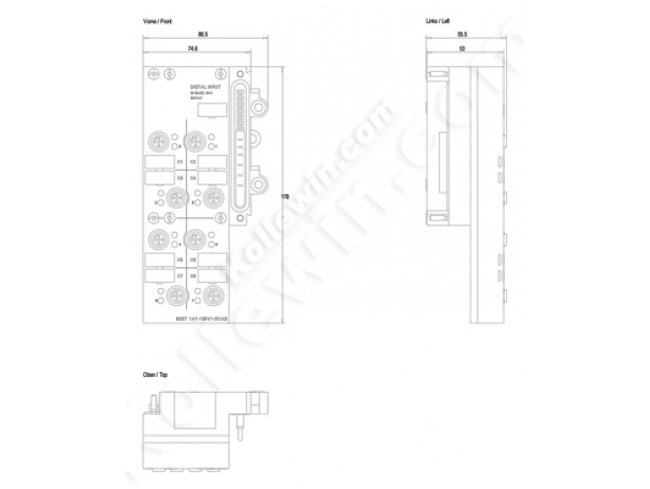

Dimensions
Width 87 mm; Width module 60 mm
Height 180 mm
Depth 55 mm
Status Jun 6, 2014
