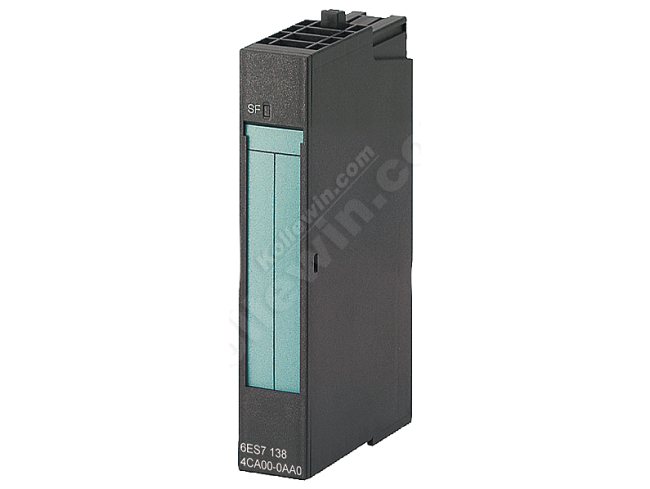

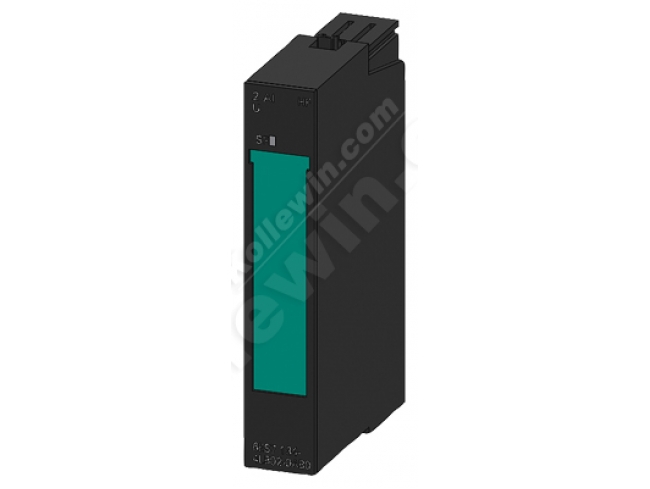

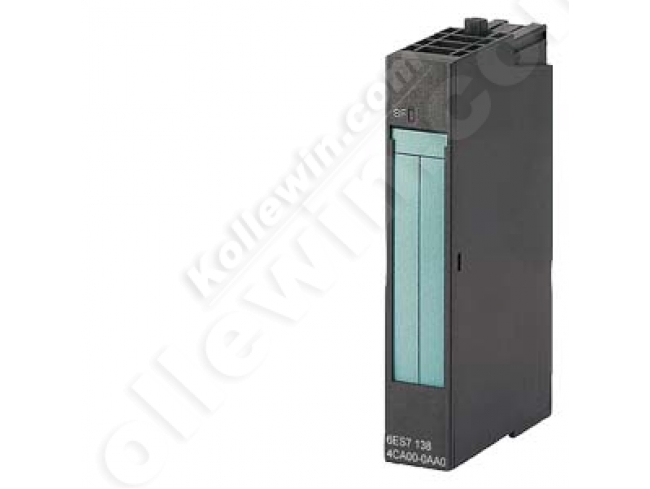

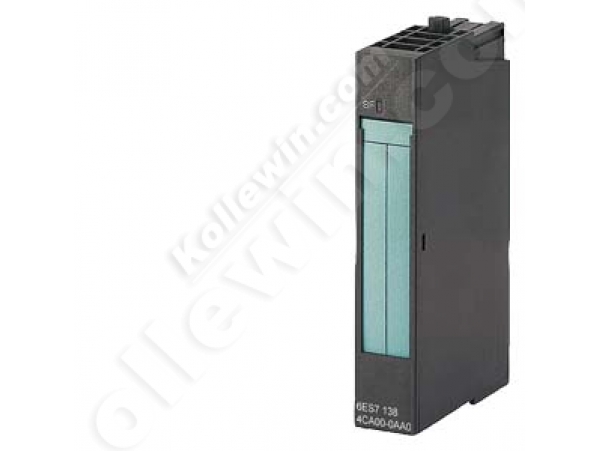

6ES7134-4LB02-0AB0 ET200S, EL-MOD., 2AI U HF, +/-10V, 1..5V

6ES7134-4LB02-0AB0 ET200S, EL-MOD., 2AI U HF, +/-10V, 1..5V

Product Code: 6ES7134-4LB02-0AB0

Availability: In Stock

Price: $102.75
Qty:
Add to Wish List
Add to Compare


Artikelnummer 6ES7134-4LB02-0AB0
SIMATIC DP, ELECTRONIC MODULE 2 AI U HIGH FEATURE FOR ET 200S, 15 MM WIDE, CYCLE TIME PER MODULE: 0.5MS, +/-10V; 15 BI + SIGN, +/-5V;15BIT+SIGN, 1..5V; 15BIT, OPERATIONAL LIMITS +/-0.1% WITH LED SF (GROUP FAULT)
Supply voltage
Load voltage L+
● Rated value (DC) 24 V
● Reverse polarity protection Yes
Input current
from load voltage L+ (without load), max. 55 mA
from backplane bus 3.3 V DC, max. 10 mA
Output voltage
Power supply to the transmitters
● present No
Power loss
Power loss, typ. 0.85 W
Address area
Address space per module
● Address space per module, max. 4 byte
Analog inputs
Number of analog inputs 2
permissible input voltage for voltage input (destruction limit), max. 35 V; 35 V continuous; 75 V for max. 1 ms
Cycle time (all channels) max. 0.5 ms; 0.5 ms for 2 channels without noise suppression, 18 / 21 ms per channel with noise suppression
Input ranges
● Voltage Yes
● Current No
● Thermocouple No
● Resistance thermometer No
● Resistance No
Input ranges (rated values), voltages
● 1 to 5 V Yes
● Input resistance (1 to 5 V) 800 kΩ
● -10 V to +10 V Yes
● Input resistance (-10 V to +10 V) 800 kΩ
● -5 V to +5 V Yes
● Input resistance (-5 V to +5 V) 800 kΩ
Cable length
● Cable length, shielded, max. 200 m
Analog value generation
Integration and conversion time/resolution per channel
● Resolution with overrange (bit including sign), max. 16 bit; 0 to 5 V: 15 bits, +/-10 V: 16 bits, +/-5 V: 16 bits
● Integration time, parameterizable Yes
● Interference voltage suppression for interference frequency f1 in Hz 60 / 50 Hz / no
● Conversion time (per channel) 0.04 ms; Without noise suppression 17/20 ms per channel with error
Smoothing of measured values
● parameterizable Yes; In 4 stages: 1 x, 4 x, 16 x, 32 x cycle time
● Step: None Yes; 1 x
● Step: low Yes; 4 x
● Step: Medium Yes; 16 x
● Step: High Yes; 32 x
Encoder
Connection of signal encoders
● for voltage measurement Yes
Errors/accuracies
Linearity error (relative to input range), (+/-) 0.01 %
Temperature error (relative to input range), (+/-) 0.003 %/K
Crosstalk between the inputs, min. -100 dB
Repeat accuracy in steady state at 25 °C (relative to input area), (+/-) 0.01 %
Operational error limit in overall temperature range
● Voltage, relative to input area, (+/-) 0.1 %; 0.2% without interference frequency suppression
Basic error limit (operational limit at 25 °C)
● Voltage, relative to input area, (+/-) 0.05 %; 0.1% without interference frequency suppression
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency
● Series mode interference (peak value of interference < rated value of input range), min. 90 dB
● Common mode interference (USS < 2.5 V) , min. 100 dB
Isochronous mode
Isochronous mode (application synchronized up to terminal) Yes
Interrupts/diagnostics/status information
Alarms
● Hardware interrupt Yes
Diagnostic messages
● Diagnostic functions Yes
● Wire-break Yes; Measuring range 1 to 5 V only
● Group error Yes
● Overflow/underflow Yes
Diagnostics indication LED
● Group error SF (red) Yes
Parameter
Remark 12 bytes, 4 bytes in compatibility mode
Measurement type/range deactivated / +/-5 V / 1 to 5 V / +/-10 V
Group diagnostics Disable / enable
Overflow/underflow Disable / enable
Galvanic isolation
Galvanic isolation analog inputs
● between the channels No; however, increased permissible potential difference between the inputs.
● between the channels and the backplane bus Yes
● between the channels and the load voltage L+ Yes
Permissible potential difference
between the inputs (UCM) 140 V DC/100 V AC
Isolation
Isolation tested with 500 V DC

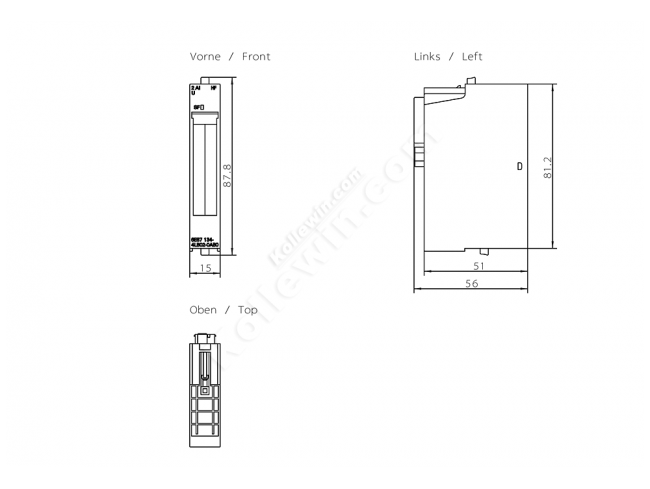

Dimensions
Width 15 mm
Height 81 mm
Depth 52 mm
Weights
Weight, approx. 45 g
last modified: 31.07.2014
