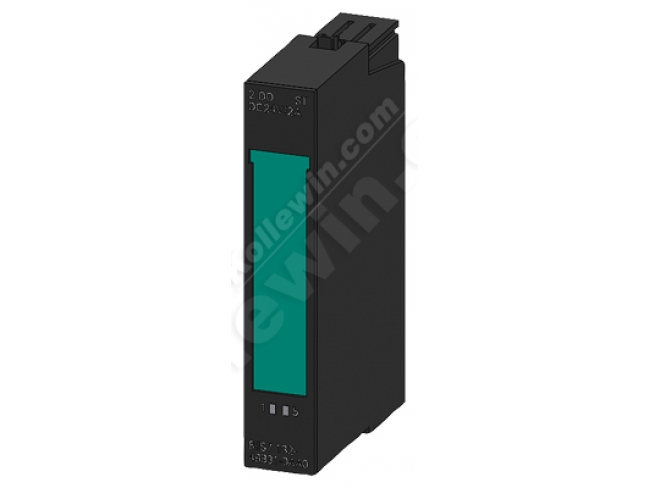

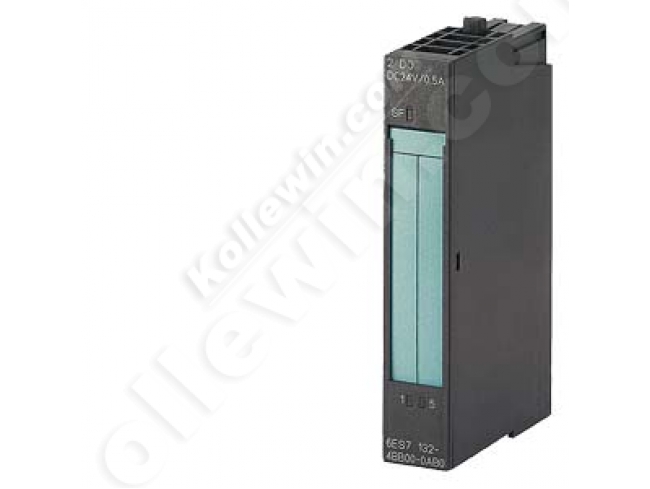

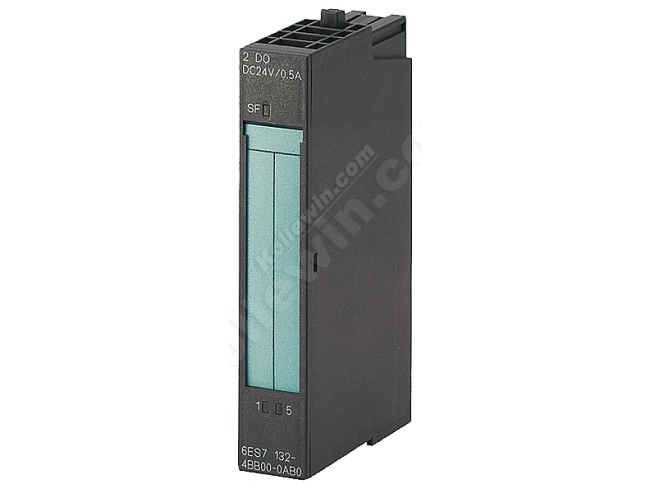

Digital output module 2 DO

-
SIMATIC DP, 5 ELECTRON. MODULES FOR ET 200S, 2 DO STANDARD DC 24V/2A, 15 MM WIDTH 5 PIECES PER PACKAGING UNIT
Supply voltage
Reverse voltage protection Yes; when using the same load voltage as on the power module
Load voltage L+
Rated value (DC) 24 V; From power module
Reverse polarity protection Yes; polarity reversal can lead to the digital outputs being connected through
Input current
from load voltage L+ (without load), max. 5 mA; Per channel
from backplane bus 3.3 V DC, max. 10 mA
Power losses
Power loss, typ. 1.4 W
Address area
Address space per module
with packing 2 bit
without packing 1 byte
Digital outputs
Number of digital outputs 2
Short-circuit protection Yes
Response threshold, typ. 2.8 to 7.2 A
Limitation of inductive shutdown voltage to -55 to -60 V, typ. L+( )
Controlling a digital input Yes
Switching capacity of the outputs
Lamp load, max. 10 W
Load resistance range
lower limit 12 Ω
upper limit 3400 Ω
Output voltage
for signal "1", min. L+ (-1 V)
Output current
for signal "1" rated value 2 A
for signal "1" permissible range for 0 to 60 °C, min. 7 mA
for signal "1" permissible range for 0 to 60 °C, max. 2.4 A
for signal "0" residual current, max. 0.5 mA
Output delay with resistive load
"0" to "1", max. 200 µs
"1" to "0", max. 1.3 ms
Parallel switching of 2 outputs
for increased power No
for redundant control of a load Yes; per module
Switching frequency
with resistive load, max. 100 Hz
with inductive load, max. 2 Hz; 0,5 H
on lamp load, max. 10 Hz
Aggregate current of outputs (per group)
all mounting positions
up to 60 °C, max. 4 A
Cable length
Cable length, shielded, max. 1000 m
Cable length unshielded, max. 600 m
Isochronous mode
Isochronous operation (application synchronized up to terminal) No
Interrupts/diagnostics/status information
Diagnostic messages
Diagnostic functions No
Diagnostics indication LED
Status indicator digital output (green) Yes
Parameter
Remark 1 byte
Galvanic isolation
Galvanic isolation digital outputs
between the channels No
between the channels and the backplane bus Yes
Isolation
Isolation checked with 500 V DC

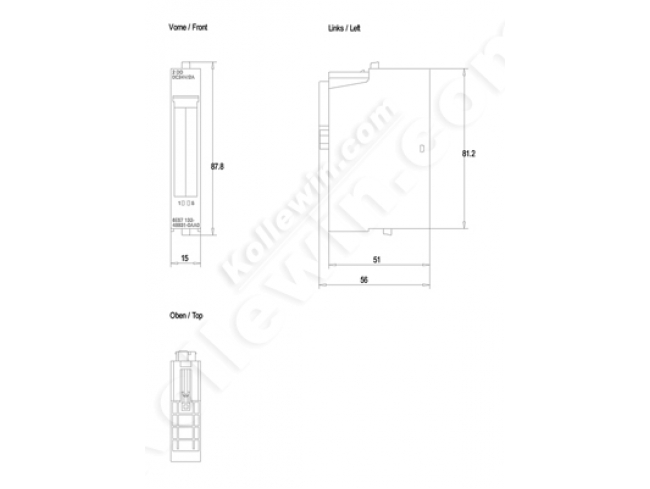

Dimensions
Width 15 mm
Height 81 mm
Depth 52 mm
Weights
Weight, approx. 40 g
Status Jun 16, 2014
