6AV6645-0DE01-0AX0 MOBILE PANEL 277 IWLAN

6AV6645-0DE01-0AX0 MOBILE PANEL 277 IWLAN

Product Code: 6AV6645-0DE01-0AX0

Availability: In Stock

Price: $2,466.00
Qty:
Add to Wish List
Add to Compare


Mobile panel 277F IWLAN

-

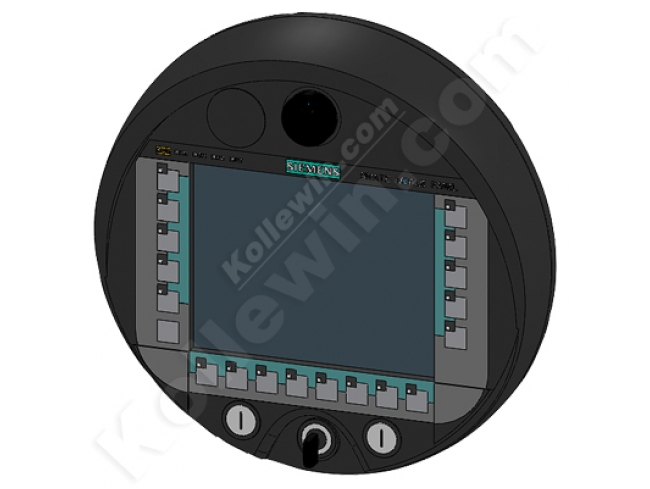

SIMATIC MOBILE PANEL 277 IWLAN WITH HANDWHEEL, KEY SWITCH AND TWO ILLUMINATED PUSHBUTTONS, CONFIGURABLE W. WINCC FLEXIBLE STANDARD VERSION 2007 AND HIGHER INCL. 1 MAIN BATTERY POWER SUPPLY TO BE ORDERED SEPARATELY: 6AV6671-5CE00-0AX0 CHARGING ST. 6AV6671-5CN00-0AX1 EXTERNAL POWER SUPPLY UNIT (EU/US/UK/JP) US RELEASE IS NOT POSSIBLE DUE TO MISSING FCC CERTIFICATION
General information
Customer-specific configuration Yes
Display
Design of display TFT
Screen diagonal 7.5 in
Size 7.5"
Display type TFT, 65536 colors
Number of colors 65536
Number of grayscales 65536
Color type Colors
Resolution (pixels)
Horizontal image resolution 640
Vertical image resolution 480
Resolution (WxH in pixel) 640 x 480
Backlighting
MTBF backlighting (at 25 °C) about 50,000 hours
MTBF backlighting (at 25 °C) 50000 h
Control elements
Operating options Keys and Touch
Function keys, programmable 18 function keys, 18 with LEDs
Connection for mouse/keyboard/barcode reader USB / USB / USB
Keyboard fonts
Number of function keys 18
Keys with LED Yes
freely inscribable membrane keys Yes
Number of function keys with LEDs 18
Multi-key operation Yes
Number of multi-key operations 2
System keys Yes
Number of configurable system keys 18
Numeric/alphabetical input Yes / Yes
Touch operation
Touch screen Analog, resistive
Design as touch screen Yes
Touch screen (analog/resistive) Yes
Special operator controls
Illuminated pushbutton Yes
Handwheel Yes
Processor
Processor ARM, 520 MHz
Processor type ARM
Memory
Type Flash / RAM
Usable memory for user data 6 MB usable memory for user data
Main memory
Capacity of main memory, maximum 128 Mbyte
Type of output
Status LEDs Yes
Power LED Yes
Time of day
Clock
Type Hardware clock, battery backup, synchronizable
Hardware clock (real-time clock) Yes
Battery-backed Yes; Via bypass battery
Synchronizable Yes
Interfaces
Interfaces 1 x Ethernet (RJ45)
Number of RS 485 interfaces 0
Number of USB interfaces 1
USB port 1 x USB
Multi Media Card slot 1 MMC/SD card slot
Number of parallel interfaces 0
Industrial Ethernet
Industrial Ethernet interface 1 x Ethernet (RJ45)
Protocols
PROFINET Yes
Supports protocol for PROFINET IO Yes
Protocols (Ethernet)
TCP/IP Yes
Further protocols
MODBUS No
other bus systems Yes
EMC
Emission of radio interference acc. to EN 55 011
Emission of radio interferences acc. to EN 55 011 (limit class A) The product is designed for use in industrial environments. When used in residential areas, the emission of radio interference according to limit class B of EN 55011 must be ensured. For further information refer to the user documentation
Degree and class of protection
IP65 enclosure Yes
Standards, approvals, certificates
Certifications CE, C-TICK
CE mark Yes
Ambient conditions
Drop height 1.2 m
Operating temperature
Operation 0 °C to +40 °C
Storage/transport temperature
Transport, storage -20 °C to +60 °C
Relative humidity
max. relative humidity 80 %
Operating systems
Operating system Windows CE
Configuration
Message indicator Yes
With alarm logging system (incl. buffer and acknowledgment) Yes
Process value display (output) Yes
Process value default (input) possible Yes
Recipe administration Yes
Configuration software
Configuration tool WinCC flexible Standard Version 2007 or higher (to be ordered separately)
2nd configuration kit WinCC flexible Standard
Version Version 2007
Configuration tool WinCC flexible
Type Standard
Languages
Online languages
Number of online/runtime languages 16
Languages
Languages per project 32
Functionality under WinCC (TIA Portal)
Libraries Yes
Applications/options Internet Explorer, Sm@rtService, Sm@rtAccess
Internet Explorer Yes
SIMATIC WinCC Sm@rtServer Yes
Task planner Yes
Help system Yes
Number of characters per info text 70
Message system
Number of alarm classes 32
Number of messages 4000
Bit messages Yes
Analog messages Yes
Number of bit messages 4000
Number of analog messages 4000
System messages HMI Yes
System messages PLC Yes
Message length (in characters) 80
Lines 1
Number of process values per message 8
Acknowledgment groups 99
Message indicator Yes
First/last value Yes
Recipe administration
Number of recipes 300
Data records per recipe 500
Entries per data record 1000
Recipe memory 64 KB integrated Flash, expandable
Variables
Number of variables per device 2048
Number of variables per screen 200
Number of variables 1000
Initial values 2048
Limit values Yes
Multiplexing Yes
Structs Yes
Type Date & Time 2048
Images
Number of configurable images 500
Permanent window/default Yes
Start screen configurable Yes
Image selection by PLC Yes
Image number in the PLC Yes
Image objects
Text objects 10,000 text elements
Fields per image 200
Date/time fields 200
Return Yes
Graphics object Bit maps, icons, vector graphics
Icons 1000
Complex image objects
Status/control With SIMATIC S7
dynamic objects Diagrams, bar graphs, sliders, analog display, invisible buttons
Number of objects per project 1000
Number per image 10
Methods Trend / profile
Limit value lines Yes
Number of bars per chart 10
Limit value lines Yes
alphanumeric fields 300
alphanumeric fields per image 200
numerical fields 2048
numerical fields per image 200
Password errors 2048
Number of slides per image 10
Number of analog indicators per image 10
Number of visible switches per project 200
visible switches per image 200
hidden switches per image 200
Number of status switches per project 200
Button status switches per image 200
Number of selector switches per project 200
Selector switches per image 200
Number of decade switches per project 200
Decade switches per image 200
Number of signal lamps per project 200
Signal lamps per image 200
Attributes for dynamic objects
Color change Yes
X/Y movement Yes
Hide Yes
Lists
Number of text lists per project 500
Number of text lists per image 200
Number of entries per text list 256
Number of graphics lists per project 400
Number of graphic lists per image 200
Number of entries per graphics list 256
Archiving
Number of archives per device 20
Number of measuring points per project 20
Number of entries per archive 10000
Message archive Yes
Process value archive Yes
Archiving methods
Sequential archive Yes
Short-term archive Yes
Data storage format
CSV Yes
Online evaluation
Using trend curves Yes
Filters
cyclic Yes
Tolerance Yes
Change Yes
Security
Number of user groups 50
Number of user rights 32
Password export/import Yes
Logging through printer
Recording/Printing Alarms, report (shift report), PROFINET
Transfer (upload/download)
Transfer of configuration USB, Ethernet, automatic transfer recognition
Process coupling
Connection to controller S7-200, S7- 300/400 see section on "System interfaces"
S7-200 Yes
Ethernet Yes
S7-300/400 Yes
PROFINET Yes
Functions
TAB sequence Yes
Calculating functions Yes
Animate Yes
Service tools/configuration aids
Clean screen Yes
Touch calibration Yes
Backup/restore Yes
Simulation Yes
Device switchover Yes
Delta transfer Yes
I/O/Options
I/O devices
Multi Media Card Yes
SD card Yes
USB memory Yes
Additional software components loadable Yes
Connection method
Design of electrical connection, plug-in connection 1
Mechanics/material
Type of housing (front) Plastic
Plastic Yes
Dimensions
Housing diameter/depth (mm) Dia 290 mm / D 103 mm
Weights
Weight (without packaging) 2.2 kg
other
free hotline Yes
Warranty period 1 a
Status May 27, 2014
