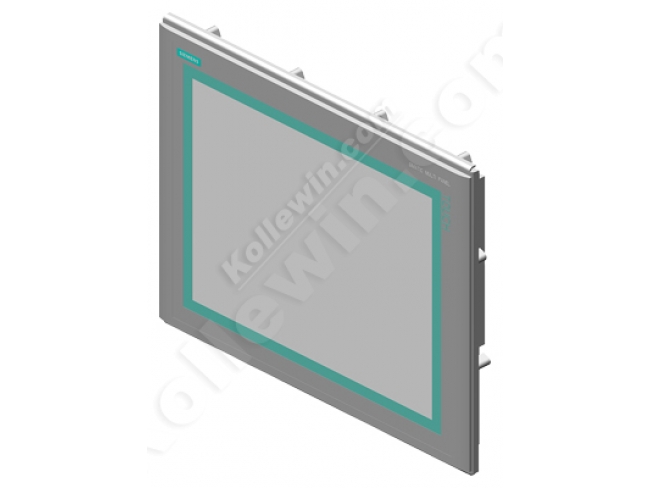

6AV6644-0CB01-2AX0 MP 377 15" TOUCH INOX (EXPLOSION PROT.)
SIMATIC MP 377 15" TOUCH STAINLESS STEEL FRONT, RETENTIV DISPLAY COVERED BY MEMBRANE, PROT. CL. FRONT IP66K, EX 2/22 15" TFT DISPLAY, CONFIGURABLE WITH WINCC FLEXIBLE
Display
Design of display
TFT
Screen diagonal
15 in
Size
15" (304.1 mm x 228.1 mm)
Display type
TFT, 65536 colors
Color type
Colors
Resolution (pixels)
● Horizontal image resolution
1 024
● Vertical image resolution
768
● Resolution (WxH in pixel)
1024 x 768
Backlighting
● MTBF backlighting (at 25 °C)
50 000 h
Control elements
Control elements
Touch screen
Operating options
Touch
Connection for mouse/keyboard/barcode reader
USB / USB / USB
Keyboard
● freely inscribable membrane keys
No
● Number of function keys with LEDs
— Number of multi-key operations
0
● Numeric/alphabetical input
Yes / Yes
— hexadecimal keyboard
Yes
— Multi-key operation
No
Touch operation
● Touch screen
analog, resistive
Input current
Rated current
1.7 A; Typical
Inrush current A²s
4 A²·s
Power
Power
41 W
Memory
Type
Flash / RAM
Usable memory for user data
12288 KB usable memory for user data / 12288 KB additional memory for options
Battery
Backup battery
● Backup battery
— minimum backup duration
0 y
Time of day
Clock
● Type
Hardware clock, battery backup, synchronizable
● Hardware clock (real-time clock)
Yes
● Battery-backed
Yes; via Goldkap for at least 6 weeks
● Synchronizable
Yes
Interfaces
Interfaces
1 x RS422, 1 x RS485, 2 x Ethernet (RJ45) (max. 12 Mbit/s)
Number of RS 485 interfaces
1
● Transmission rate, max.
12 Mbit/s
USB port
2 x USB
PC card slot
No
CF card slot
1 x CF card slot
Multi Media Card slot
1x Multimedia Card slot, up to 128 MB
Industrial Ethernet
● Industrial Ethernet interface
2 x Ethernet (RJ45)
Protocols
PROFIBUS
Yes
MPI
Yes
Protocols (Ethernet)
● TCP/IP
Yes
Protocols (terminal link)
● Sm@rtService
Yes
EMC
Emission of radio interference acc. to EN 55 011
● Emission of radio interferences acc. to EN 55 011 (limit class A)
Yes
Degree and class of protection
Front
IP66K
IP (at the front)
IP66K
IP (rear)
IP20
Standards, approvals, certificates
Certifications
CE, FM Class I Div. 2, UL, cULus, EX Zone 2, EX Zone 22, C-TICK
cULus
Yes
EMC
The product is designed for use in industrial environments. When used in residential areas, the emission of radio interference according to limit class B of EN 55011 must be ensured. For further information please refer to the user documentation.
EAC (formerly Gost-R)
No
Marine approval
● Germanischer Lloyd (GL)
No
● American Bureau of Shipping (ABS)
No
● Bureau Veritas (BV)
No
● Det Norske Veritas (DNV)
No
● Lloyds Register of Shipping (LRS)
No
● Polski Rejestr Statkow (PRS)
No
Use in hazardous areas
● EX zone 2
Yes
● EX zone 22
Yes
● FM Class I Division 2
Yes
Ambient conditions
maximum permissible angle of inclination without external ventilation
+/- 35 °
Storage/transport temperature
● Transport, storage
-20 °C to +60 °C
Relative humidity
● Operation, max.
90 %
Operating systems
Operating system
Windows CE
Configuration
Message indicator
Yes
With alarm logging system (incl. buffer and acknowledgment)
Yes
Process value display (output)
Yes
Process value default (input) possible
Yes
Recipe administration
Yes
Configuration software
● STEP 7 Basic (TIA Portal)
No
● STEP 7 Professional (TIA Portal)
No
● WinCC flexible Compact
No
● WinCC flexible Standard
Yes
● WinCC flexible Advanced
Yes
● WinCC Basic (TIA Portal)
No
● WinCC Comfort (TIA Portal)
Yes
● WinCC Advanced (TIA Portal)
Yes
● WinCC Professional (TIA Portal)
Yes
● Configuration tool
WinCC flexible Standard Version 2007 or higher (to be ordered separately)
● 2nd configuration kit
WinCC flexible Standard
— Version
Version 2007
— Configuration tool
WinCC flexible
— Type
Standard
Languages
Online languages
● Number of online/runtime languages
16
Languages
● Languages per project
32
Functionality under WinCC (TIA Portal)
Libraries
Yes
Number of Visual Basic Scripts
● Debugging in the simulator
No
Task planner
Yes
Help system
Yes
● Number of characters per info text
70
● Number of tooltips
0
Message system
● Number of alarm classes
32
● Number of messages
4 000
● Bit messages
Yes
● Analog messages
Yes
● Number of bit messages
4 000
● Number of analog messages
4 000
● Telegram message procedure Alarm S
Yes
● System messages HMI
Yes
● System messages PLC
Yes
● System messages, other (SIMATIC S7, Sinumerik, Simotion, etc.)
Yes
● Message length (in characters)
80
● Lines
1
● Number of process values per message
8
● Acknowledgment groups
Yes
● Message indicator
Yes
● Acoustic feedback
No
● First/last value
Yes
Recipe administration
● Number of recipes
500
● Data records per recipe
1 000
● Entries per data record
1 000
● Recipe memory
128 KB integrated Flash, expandable
Variables
● Number of variables per device
4 096; Configuration with WinCC flexible 2008 and higher
● Number of variables per screen
400
● Number of variables
2 000
● Initial values
2 048
● Limit values
Yes
● Multiplexing
Yes
● Structs
Yes
● Type Date & Time
2 048
Images
● Number of configurable images
500
● Permanent window/default
Yes
● Start screen configurable
Yes
● Image selection by PLC
Yes
● Image number in the PLC
Yes
Image objects
● Text objects
30000 text elements
● Fields per image
400
● Date/time fields
400
● Index of screen context
No
● Return
Yes
● Graphics object
Bit maps, icons, vector graphics
— Icons
2 000
— Icon (full screen)
0
Complex image objects
● Status/control
With SIMATIC S7
● dynamic objects
Diagrams, bar graphs, sliders, analog display, invisible buttons
— Number of objects per project
2 000
— Number per image
20
● Methods
Trend / profile
● Limit value lines
Yes
● Number of bars per chart
20
● Limit value lines
Yes
● alphanumeric fields
300
● alphanumeric fields per image
400
● numerical fields
2 048
● numerical fields per image
400
● Password errors
2 048
● Number of slides per image
20
● Number of analog indicators per image
20
● Number of visible switches per project
400
● visible switches per image
400
● hidden switches per image
400
● Number of status switches per project
400
● Button status switches per image
400
● Number of selector switches per project
400
● Selector switches per image
400
● Number of decade switches per project
0
● Decade switches per image
0
● Number of signal lamps per project
400
● Signal lamps per image
400
Attributes for dynamic objects
● Color change
Yes
● X/Y movement
Yes
● Hide
Yes
● Angle of turn
No
Lists
● Number of text lists per project
500
● Number of text lists per image
400
● Number of entries per text list
256
● Number of graphics lists per project
500
● Number of graphic lists per image
400
● Number of entries per graphics list
256
Archiving
● Number of archives per device
50
● Number of measuring points per project
50
● Number of entries per archive
50 000
● Message archive
Yes
● Process value archive
Yes
● Archiving methods
Yes
— Sequential archive
Yes
— Short-term archive
Yes
● Memory location
Yes
— CF card
Yes
— USB memory
No
— Ethernet
Yes
● Data storage format
Yes
— CSV
Yes
— TXT
No
● external evaluation
Yes
● Size of archive
Yes
● Online evaluation
Yes
— via trends
Yes
Filters
● cyclic
Yes
● Tolerance
Yes
● Change
Yes
Security
● Number of user groups
50
● Number of user rights
32
● Password export/import
Yes
Data carrier support
● PC card
No
● CF card
Yes
● Hard disk
Yes; Only USB hard disks with external power supply
Logging through printer
● Recording/Printing
Alarms, report (shift report), color print, hardcopy
Transfer (upload/download)
● Transfer of configuration
MPI/PROFIBUS DP, serial, USB, Ethernet, by means of external storage medium, automatic transfer recognition
Process coupling
● Connection to controller
S5, S7-200, S7-300/400, TI 505, Win AC, PC (TCP/IP), SINUMERIK, SIMOTION, Allen Bradley (DF1), Allen Bradley (DF485), Mitsubishi (FX), OMRON (LINK/Multilink), Modicon (Modbus), further non-Siemens drivers, see chapter "System interfaces"
