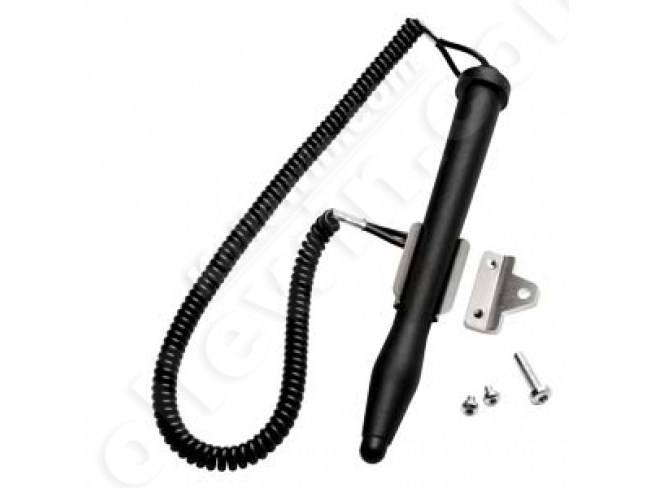

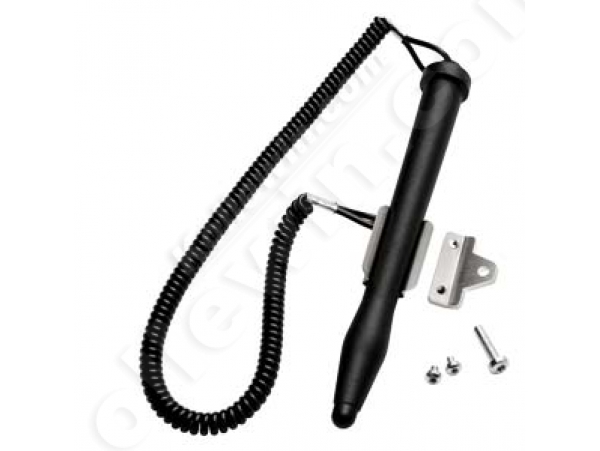

6AV7672-1JB00-0AA0 TOUCH PEN, THICK, RESISTIVE TECHNOLOGY

6AV7672-1JB00-0AA0 TOUCH PEN, THICK, RESISTIVE TECHNOLOGY

Product Code: 6AV7672-1JB00-0AA0

Availability: In Stock

Price: $44.53
Qty:
Add to Wish List
Add to Compare
Artikelnummer 6AV7672-1JB00-0AA0
TOUCH PEN, THICK, FOR RESISTIVE TOUCHSCREEN, OPTIMIZED FOR USE WHEN WEARING GLOVES, INCLUDING SCREW-ON WALL BRACKET AMOUNT AND CONTENT: SEE TECHNICAL DATA
Product type designation
Installation type/mounting
Wall mounting/direct mounting possible Yes; Terminal holder can be attached
Standards, approvals, certificates
CE mark Yes
Ambient conditions
Operating temperature
● Operating temperature range, min. 0 °C
● Operating temperature range, max. 55 °C
Storage/transport temperature
● Min. -20 °C
● max. 70 °C
Relative humidity
● Operation, max. 90 %
Mechanics/material
Screw type
● Torx Yes
plastic Yes
Dimensions
Height 155 mm; Length
Thickness 20 mm; Diameter
Scope of supply
Delivery unit in items 1; Optional for extension units of the PRO devices
other
Note: for resistive touch screens, optimized for operating while wearing gloves
Usable in the following products
● Product 1 6AV6642-0AA11-0AX0
● Product 2 6AV6642-0AA11-0AX1
● Product 3 6AV6642-0BD01-3AX0
● Product 4 6AV6642-0BA01-1AX1
● Product 5 6AV6642-0BC01-1AX1
● Product 6 6AV6642-0DC01-1AX0
● Product 7 6AV6642-0DA01-1AX0
● Product 8 6AV6545-0DA10-0AX0
● Product 9 6AV6545-0DB10-0AX0
● Product 10 6AV6545-0AA15-2AX0
● Product 11 6AV3637-1PL00-0AX0
● Product 12 6AV6642-0EA01-3AX0
● Product 13 6AV6644-0CB01-2AX0
● Product 14 6AV6643-8AD10-0AA0
● Product 15 6AV6640-0CA01-0AX0
● Product 16 6AV6545-0AH10-0AX0
● Product 17 6AV6545-0AH10-0AX1
● Product 18 6AV6640-0CA01-0AX0
● Product 19 6AV6545-0CC10-0AX0
● Product 20 6AV2123-2*
last modified: 14.10.2014
