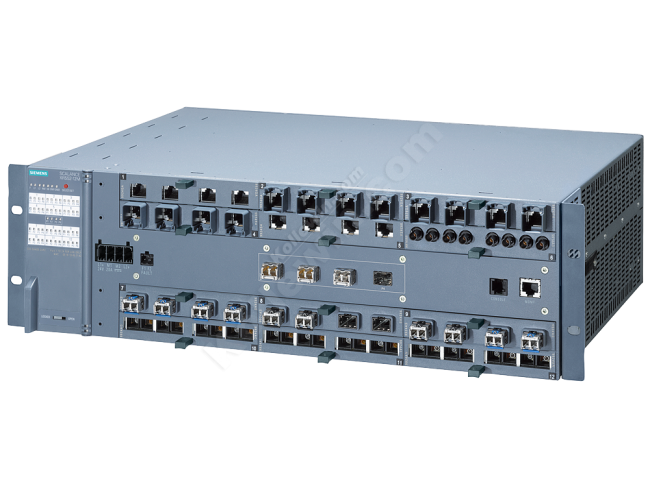

6GK5552-0AR00-2AR2 SCALANCE XR552-12M

6GK5552-0AR00-2AR2 SCALANCE XR552-12M

Product Code: 6GK5552-0AR00-2AR2

Availability: In Stock

Price: $100,000,000,000.00
Qty:
Add to Wish List
Add to Compare
Artikelnummer 6GK5552-0AR00-2AR2
Product type designation SCALANCE XR552-12M
Product description
SCALANCE XR552-12M; MANAGED IE SWITCH; LAYER 3 INTEGRATED; 19" RACK; PORTS FRONT SIDE; 4 X 1000/10000MBIT/S SFP PLUS; 12 X 100/1000MBIT/S 4-PORT- MEDIA MODULE, ELECTRICAL, ELECTRICAL POE OR OPTICAL; LED-DIAGNOSTICS; FAULT SIGNAL CONTACT; SELECT/SET-BUTTON; PROFINET-IO DEVICE; NETWORK MANAGEMENT; INTEGRATED REDUNDANCY MANAGER; OFFICE FEATURES (RSTP, VLAN, IGMP,..); C-PLUG IN THE SCOPE OF SUPPLY
Transmission rate
Transfer rate 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s, 10 Gbit/s
Interfaces
Number of electrical/optical connections
● for network components or terminal equipment / maximum 52
Number of electrical connections
● for Power-over-Ethernet / for network components or terminal equipment 12
● for SFP+/SFP 4
● for operator console 1
● for management purposes 1
● for signaling contact 1
● for media module 12
● for power supply 1
● for redundant voltage supply 1
Design of the electrical connection
● for network components or terminal equipment Dependent on selected media modules
● for Power-over-Ethernet / for network components or terminal equipment RJ45 port
● for operator console RJ11 port
● for management purposes RJ45 port
● for signaling contact 2-pole terminal block
● for power supply 4-pole terminal block
Design of the optical interface
● for fiber optic cable / at 100 Mbit/s Dependent on selected media modules
● for fiber optic cable / at 1000 Mbit/s Dependent on selected media modules
● for fiber optic cable / at 10 Gbit/s Depending on selected SFP+ plug-in transceiver
design of the removable storage / C-PLUG/KEY-PLUG Yes
Signal-Inputs/outputs
Operating voltage / of the signaling contacts
● for DC / Rated value 24 V
Operating current / of the signaling contacts
● for DC / maximum 0.1 A
Supply voltage, current consumption, power loss
Type of voltage supply / redundant power supply unit No
Type of voltage / of the supply voltage DC
Supply voltage
● external 24 V
● external 19.2 ... 28.8 V
Product component / fusing at power supply input Yes
Fuse protection type / at input for supply voltage F 15 A / 125 V
Permitted ambient conditions
Ambient temperature
● during operation 0 ... 60 °C
● during storage -40 ... +70 °C
● during transport -40 ... +70 °C
● Note Operation with integral fan, replaceable
Relative humidity
● at 25 °C / without condensation / during operation / maximum 95 %
Protection class IP IP20
Design, dimensions and weight
Design 19" rack
Number of height units / relating to 19-inch cabinet 3
Width 449 mm
Height 130.8 mm
Depth 305 mm
Net weight 10 kg
Mounting type
● 19-inch installation Yes
● 35 mm DIN rail mounting No
● wall mounting No
● S7-300 rail mounting No
● S7-1500 rail mounting No
Type of cable outlet Cable outlet at front
Product properties, functions, components / general
Cascading in cases of star topology Any (depending only on signal propagation time)
Product functions / management, configuration
Product function
● CLI Yes
● web-based management Yes
● MIB support Yes
● TRAPs via email Yes
● Configuration with STEP 7 Yes
● RMON Yes
● Port mirroring Yes
● multiport mirroring Yes
● CoS Yes
● PROFINET IO diagnosis Yes
● switch-managed Yes
Telegram length / for Ethernet / maximum 9216 byte
Protocol / is supported
● Telnet Yes
● HTTP Yes
● HTTPS Yes
● TFTP Yes
● FTP Yes
● BOOTP Yes
● GMRP Yes
● DCP Yes
● LLDP Yes
● IGMP (snooping/querier) Yes
Identification & maintenance function
● I&M0 - device-specific information Yes
● I&M1 – higher-level designation/location designation Yes
Protocol / is supported
● SNMP v1 Yes
● SNMP v2 Yes
● SNMP v3 Yes
Product functions / Diagnosis
Product function
● Port diagnostics Yes
● Statistics Packet Size Yes
● Statistics packet type Yes
● Error statistics Yes
● SysLog Yes
Product functions / VLAN
Product function
● VLAN - port based Yes
● VLAN - protocol-based Yes
● VLAN - IP-based Yes
● VLAN dynamic Yes
Number of VLANs / maximum 255
Number of VLANs - dynamic / maximum 255
Protocol / is supported / GVRP Yes
Product functions / DHCP
Product function
● DHCP client Yes
● DHCP Option 82 Yes
● DHCP Option 66 Yes
● DHCP Option 67 Yes
Product functions / Routing
Service / Routing / Note IP routing integrated, IPv6 available soon
Product function
● Static IP routing Yes
● Static IP routing IPv6 No
● dynamic IP routing Yes
● dynamic IP routing IPv6 No
Protocol / is supported
● RIPv2 Yes
● RIPnG for IPv6 No
● OSPFv2 Yes
● OSPFv3 for IPv6 No
● VRRP Yes
● VRRP for IPv6 No
Product functions / Redundancy
Product function
● Ring redundancy Yes
● High Speed Redundancy Protocol (HRP) Yes
● high speed redundancy protocol (HRP) with redundancy manager Yes
● high speed redundancy protocol (HRP) with standby redundancy Yes
● Media Redundancy Protocol (MRP) Yes
● media redundancy protocol (MRP) with redundancy manager Yes
● redundancy procedure STP Yes
● redundancy procedure RSTP Yes
● redundancy procedure MSTP Yes
● Passive listening Yes
Protocol / is supported
● LACP Yes
Product functions / Security
Product function
● ACL - MAC-based Yes
● ACL - port/MAC-based Yes
● IEEE 802.1x (radius) Yes
● Broadcast/Multicast/Unicast Limiter Yes
● broadcast blocking Yes
Protocol / is supported
● SSH Yes
Product functions / Time
Product function
● SICLOCK support Yes
Protocol / is supported
● NTP Yes
● SNTP Yes
Type of time synchronization IEEE 1588 available soon
Standards, specifications, approvals
Standard
● for FM FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4
● for hazardous zone EN 60079-0: 2009, EN60079-15: 2010, II 3 G Ex nA IIC T4 Gc, KEMA 07 ATEX 0145 X
● for safety / from CSA and UL UL 60950-1, CSA C22.2 No. 60950-1-03
● for hazardous zone / from CSA and UL ISA 12.12.01-2012 (Hazardous Location), Class 1 / Division 2 / Group A, B, C, D / T4, Class 1 / Zone 2 / Group IIC / T4
● for emitted interference EN 61000-6-4 (Class A)
● for interference immunity EN 61000-6-2
Certificate of suitability EN 61000-6-2, EN 61000-6-4
● CE marking Yes
● C-Tick Yes
● KC approval Yes
● E1 approval No
● E1 approval No
Further Information / Internet Links
Internet-Link
● to website: Selector SIMATIC NET SELECTION TOOL http://www.siemens.com/snst
● to website: Industrial communication http://www.siemens.com/simatic-net
● to website: Information and Download Center http://www.siemens.com/automation/net/catalog
● to website: Image database http://automation.siemens.com/bilddb
● to website: CAx Download Manager http://www.siemens.com/cax
● to website: Industry Online Support http://support.automation.siemens.com
Security information
Security information Siemens provides products and solutions with industrial security functions that support the secure operation of plants, solutions, machines, equipment and/or networks. They are important components in a holistic industrial security concept. With this in mind, Siemens’ products and solutions undergo continuous development. Siemens recommends strongly that you regularly check for product updates. For the secure operation of Siemens products and solutions, it is necessary to take suitable preventive action (e.g. cell protection concept) and integrate each component into a holistic, state-of-the-art industrial security concept. Third-party products that may be in use should also be considered. For more information about industrial security, visit http://www.siemens.com/industrialsecurity. To stay informed about product updates as they occur, sign up for a product-specific newsletter. For more information, visit http://support.automation.siemens.com. (V3.4)
last modified: 23.10.2014
Date
31.10.2014		 Changes preserved
© Copyright Siemens AG 2014
