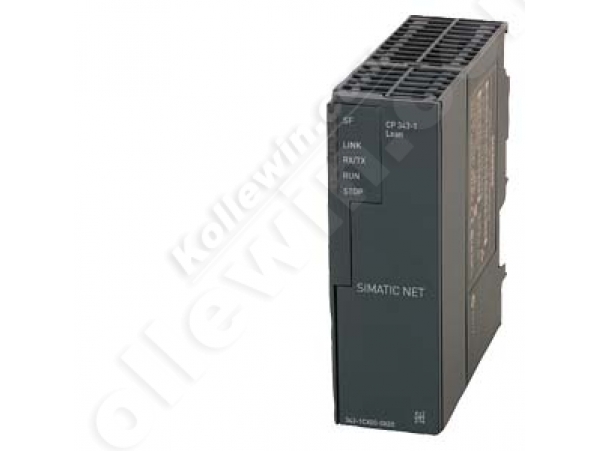

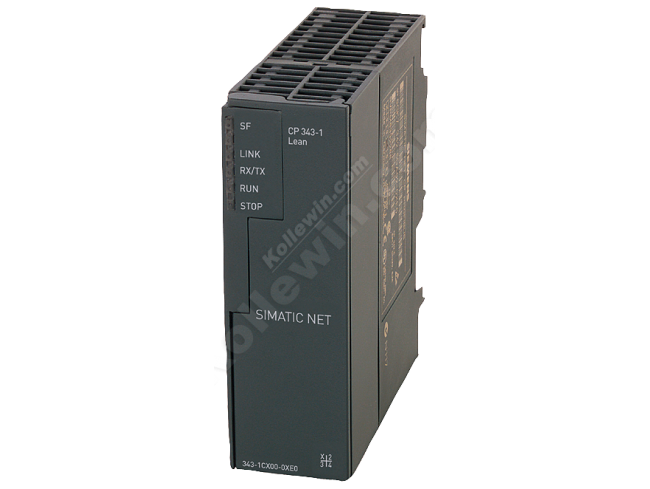

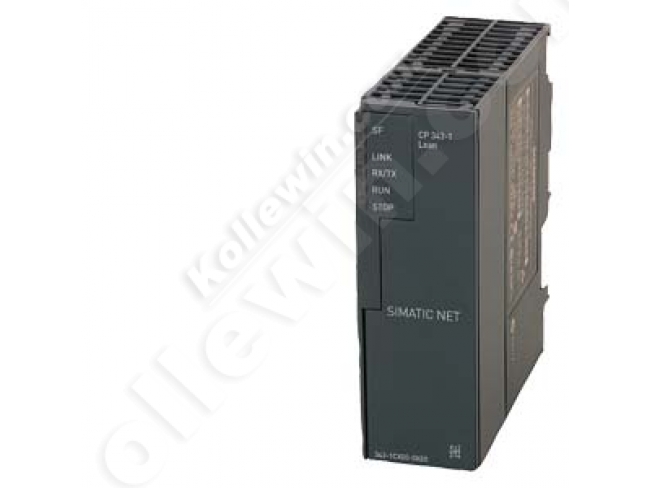

6GK7343-1CX00-0XE0 COMMUNICATION PROCESSOR CP 343-1 LEAN

6GK7343-1CX00-0XE0 COMMUNICATION PROCESSOR CP 343-1 LEAN

Product Code: 6GK7343-1CX00-0XE0

Availability: In Stock

Price: $424.70
Qty:
Add to Wish List
Add to Compare
Artikelnummer 6GK7343-1CX00-0XE0
Product type designation CP 343-1 Lean
SIMATIC NET, CP 343-1 LEAN COMMUNICATIONS PROCESSOR F. CONNECTION OF SIMATIC S7-300 W. IND. ETHERNET USING TCP/IP AND UDP, SEND/RECEIVE WITH AND W/O RFC1006, S7 COMMUN., MULTICAST, FETCH/WRITE, DIAGNOSTIC EXPANSIONS, LOADABLE COMMUNICATION BLOCKS, SNMP DIAGNOSTICS, INITIALIZ. USING LAN, 10/100 MBIT, RJ45 PORT FOR LAN
Transmission rate
Transfer rate
● at the 1st interface 10 ... 100 Mbit/s
Interfaces
Number of interfaces / acc. to Industrial Ethernet 1
Number of electrical connections
● at the 1st interface / acc. to Industrial Ethernet 1
● for power supply 1
Design of the electrical connection
● at the 1st interface / acc. to Industrial Ethernet RJ45 port
● for power supply 2-pole plugable terminal block
Supply voltage, current consumption, power loss
Type of voltage / of the supply voltage DC
Supply voltage / 1 / from backplane bus 5 V
Supply voltage 24 V
Supply voltage / external 24 V
Relative positive tolerance / for DC / at 24 V 20 %
Relative negative tolerance / for DC / at 24 V 15 %
Consumed current
● from external supply voltage / for DC / at 24 V / typical 0.16 A
● from external supply voltage / for DC / at 24 V / maximum 0.2 A
Active power loss 5.8 W
Permitted ambient conditions
Ambient temperature
● for vertical installation / during operation 0 ... 40 °C
● for horizontally arranged busbars / during operation 0 ... 60 °C
● during storage -40 ... +70 °C
● during transport -40 ... +70 °C
Relative humidity / at 25 °C / without condensation / during operation / maximum 95 %
Protection class IP IP20
Design, dimensions and weight
Module format Compact module S7-300 single width
Width 40 mm
Height 125 mm
Depth 120 mm
Net weight 0.2 kg
Mounting type
● S7-300 rail mounting Yes
Performance data
Performance data / open communication
Number of possible connections / for open communication / by means of SEND/RECEIVE blocks
● maximum 8
Amount of data
● as user data per ISO on TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum 8 Kibyte
● as user data per TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum 8 Kibyte
● as user data per UDP connection / for open IE communication / by means of SEND/RECEIVE blocks / maximum 2 Kibyte
Number of Multicast stations 8
Performance data / S7 communication
Number of possible connections / for S7 communication
● maximum 4
Service
● of SIMATIC communication / as server Yes
Performance data / multi-protocol mode
Number of active connections / with multi-protocol mode 12
Performance data / telecontrol
Protocol / is supported
● TCP/IP Yes
Product functions / management, configuration
Product function / MIB support Yes
Protocol / is supported
● SNMP v1 Yes
● DCP No
● LLDP No
Configuration software
● required NCM S7 for Industrial Ethernet (delivered together with STEP 7 V5.x)
Identification & maintenance function
● I&M0 - device-specific information Yes
● I&M1 – higher-level designation/location designation Yes
Product functions / Diagnosis
Product function / Web-based diagnostics No
Product functions / switch
Product feature / Switch No
Product functions / Redundancy
Product function
● Ring redundancy No
Product functions / Security
Product function
● password protection for Web applications No
● ACL - IP-based No
● ACL - IP-based for PLC/routing No
● switch-off of non-required services No
● Blocking of communication via physical ports No
● log file for unauthorized access No
Product functions / Time
Product function / SICLOCK support No
Further Information / Internet Links
Internet-Link
● to website: Selector SIMATIC NET SELECTION TOOL http://www.siemens.com/snst
● to website: Industrial communication http://www.siemens.com/simatic-net
● to website: Information and Download Center http://www.siemens.com/automation/net/catalog
● to website: Image database http://automation.siemens.com/bilddb
● to website: CAx Download Manager http://www.siemens.com/cax
● to website: Industry Online Support http://support.automation.siemens.com
last modified: 03.11.2014
