6GK7343-1EX21-0XE0 COMMUNICATION PROCESSOR CP 343-1

0 reviews | Write a review

Product Code: 6GK7343-1EX21-0XE0

Availability: In Stock

Price: $938.45

Qty:

Add to Wish List

Add to Compare

Description
Reviews (0)

Artikelnummer

6GK7343-1EX21-0XE0

Product type designation		CP 343-1
		COMMUNICATIONSPROCESSOR CP343-1 CONNECTING SIMATIC S7-300 TO IND. ETHERNET VIA PROFINET IO, CONTROLLER,ISO, TCP/IP AND UDP, AND WITHOUT RFC, 1006 DIAGNOSTIC EXPANSIONS, MULTICAST, LOADABLE COMMUNICATION BLOCKS SNMP DIAGNOSIS, INITIALIZATION VIA LAN, DHCP, NTP-CPU SYNC, 10/100 MBIT, ONLY RJ45 CONNECTION
Transmission rate
Transfer rate
● at the 1st interface		10 ... 100 Mbit/s
Interfaces
Number of interfaces / acc. to Industrial Ethernet		1
Number of electrical connections
● at the 1st interface / acc. to Industrial Ethernet		1
● for power supply		1
Design of the electrical connection
● at the 1st interface / acc. to Industrial Ethernet		RJ45 port
● for power supply		2-pole plugable terminal block
design of the removable storage / C-PLUG		Yes
Supply voltage, current consumption, power loss
Type of voltage / of the supply voltage		DC
Supply voltage / 1 / from backplane bus		5 V
Supply voltage		24 V
Supply voltage / external		24 V
Relative positive tolerance / for DC / at 24 V		20 %
Relative negative tolerance / for DC / at 24 V		15 %
Consumed current
● from external supply voltage / for DC / at 24 V / typical		0.2 A
Active power loss		5.8 W
Permitted ambient conditions
Ambient temperature
● for vertical installation / during operation		0 ... 40 °C
● for horizontally arranged busbars / during operation		0 ... 60 °C
● during storage		-40 ... +70 °C
● during transport		-40 ... +70 °C
Relative humidity / at 25 °C / without condensation / during operation / maximum		95 %
Protection class IP		IP20

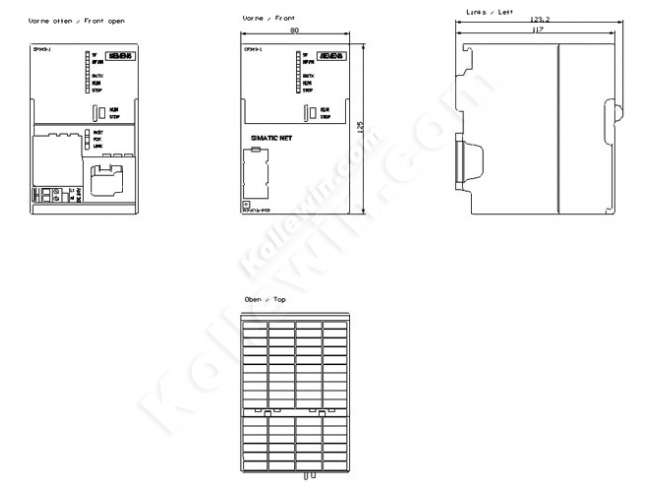

Design, dimensions and weight
Module format		Compact module S7-300 double width
Width		80 mm
Height		125 mm
Depth		120 mm
Net weight		0.22 kg
Mounting type
● S7-300 rail mounting		Yes
Performance data
Performance data / open communication
Number of possible connections / for open communication / by means of SEND/RECEIVE blocks
● maximum		16
Amount of data
● as user data per ISO connection / for open communication / by means of SEND/RECEIVE blocks / maximum		8 Kibyte
● as user data per ISO on TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum		8 Kibyte
● as user data per TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum		8 Kibyte
● as user data per UDP connection / for open IE communication / by means of SEND/RECEIVE blocks / maximum		2 Kibyte
Number of Multicast stations		16
Performance data / S7 communication
Number of possible connections / for S7 communication
● maximum		16
Performance data / multi-protocol mode
Number of active connections / with multi-protocol mode		32
Performance data / PROFINET communication / as PN IO-Controller
Amount of data
● as user data for input variables / as PROFINET IO controller / maximum		1 Kibyte
● as user data for input variables / as PROFINET IO controller / maximum		1 Kibyte
● as user data for input variables per PN IO device / as PROFINET IO controller / maximum		1433 byte
● as user data for output variables per PN IO device / as PROFINET IO controller / maximum		1433 byte
● as user data for input variables per PN IO device / for each sub-module as PROFINET IO controller / maximum		240 byte
● as user data for output variables per PN IO device / for each sub-module as PROFINET IO controller / maximum		240 byte
Performance data / telecontrol
Protocol / is supported
● TCP/IP		Yes
Product functions / management, configuration
Product function / MIB support		Yes
Protocol / is supported
● SNMP v1		Yes
● DCP		Yes
● LLDP		No
Configuration software
● required		STEP 7 V5.3 SP3 or higher
Identification & maintenance function
● I&M0 - device-specific information		Yes
● I&M1 – higher-level designation/location designation		Yes
Product functions / Diagnosis
Product function / Web-based diagnostics		No
Product functions / switch
Product feature / Switch		No
Product functions / Redundancy
Product function
● Ring redundancy		No
Product functions / Security
Product function
● password protection for Web applications		No
● ACL - IP-based		Yes
● ACL - IP-based for PLC/routing		No
● switch-off of non-required services		No
● Blocking of communication via physical ports		No
● log file for unauthorized access		No
Product functions / Time
Product function / SICLOCK support		Yes
Product function / pass on time synchronization		Yes
Protocol / is supported / NTP		Yes
Further Information / Internet Links
Internet-Link
● to website: Selector SIMATIC NET SELECTION TOOL		http://www.siemens.com/snst
● to website: Industrial communication		http://www.siemens.com/simatic-net
● to website: Information and Download Center		http://www.siemens.com/automation/net/catalog
● to website: Image database		http://automation.siemens.com/bilddb
● to website: CAx Download Manager		http://www.siemens.com/cax
● to website: Industry Online Support		http://support.automation.siemens.com
last modified:		03.11.2014
Date 04.11.2014	Changes preserved © Copyright Siemens AG 2014
