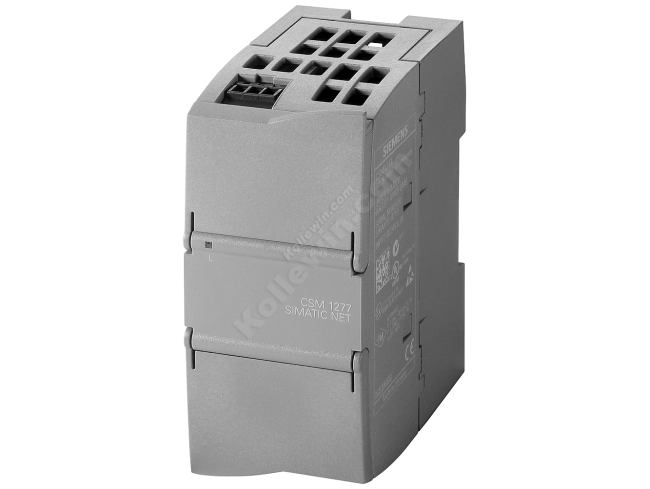

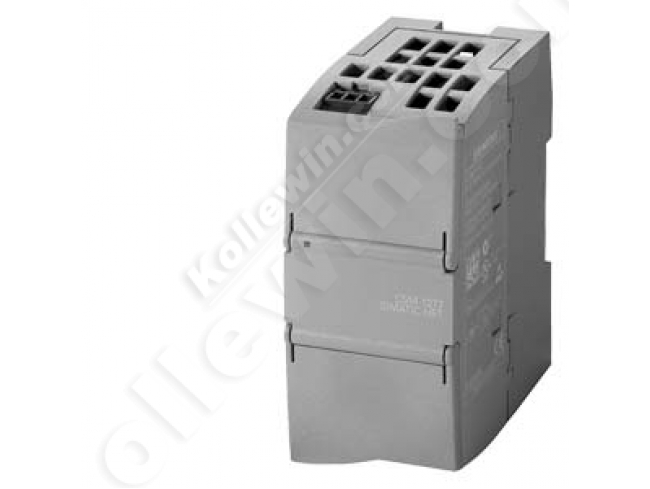

6GK7277-1AA00-0AA0 COMPACT SWITCH MODULE CSM 1277
COMPACT SWITCH MODULE CSM 1277 CONNECTION SIMATIC S7-1200 AND UP TO 3 ADDIT. DEVICES TO IND. ETHERNET W. 10/100 MBIT/S UNMANAGED SWITCH, 4 RJ45 PORTS, EXT. 24V DC POWER SUPPLY LED DIAGNOS., S7-1200 MODULE INCL. MANUAL ON CD
Transmission rate
Transfer rate
10 Mbit/s, 100 Mbit/s
Interfaces
Number of electrical/optical connections
● for network components or terminal equipment / maximum
4
Number of electrical connections
● for network components or terminal equipment
4
● for power supply
1
Design of the electrical connection
● for network components or terminal equipment
RJ45 port
● for power supply
3-pole terminal block
Supply voltage, current consumption, power loss
Type of voltage / of the supply voltage
DC
Supply voltage
● external
24 V
● external
19.2 ... 28.8 V
Product component / fusing at power supply input
Yes
Fuse protection type / at input for supply voltage
0,5 A / 60 V
Consumed current / maximum
0.07 A
Active power loss
● for DC / at 24 V
1.6 W
Permitted ambient conditions
Ambient temperature
● during operation
0 ... 60 °C
● during storage
-40 ... +70 °C
● during transport
-40 ... +70 °C
Relative humidity
● at 25 °C / without condensation / during operation / maximum
95 %
Protection class IP
IP20

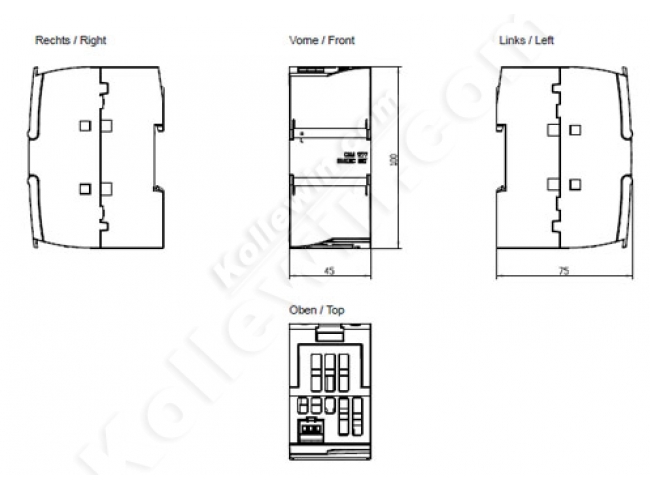

Design, dimensions and weight
Design
SIMATIC S7-1200 device design
Width
45 mm
Height
100 mm
Depth
75 mm
Net weight
0.15 kg
Mounting type
● 35 mm DIN rail mounting
Yes
● wall mounting
Yes
● S7-300 rail mounting
No
● S7-1500 rail mounting
No
Product functions / management, configuration
Product function
● multiport mirroring
No
● switch-managed
No
Standards, specifications, approvals
Standard
● for FM
FM3611: Class 1, Divison 2, Group A, B, C, D / T.., CL.1, Zone 2, GP. IIC, T.. Ta
● for hazardous zone
EN 600079-15:2005, EN 600079-0:2006, II 3 G Ex nA II T4, KEMA 08 ATEX 0003 X
● for safety / from CSA and UL
UL 508, CSA C22.2 No. 142
● for emitted interference
EN 61000-6-4:2007
● for interference immunity
EN 61000-6-2:2005
Certificate of suitability
EN 61000-6-2:2005, EN 61000-6-4:2007
● CE marking
Yes
● C-Tick
Yes
● KC approval
No
Marine classification association
● American Bureau of Shipping Europe Ltd. (ABS)
No
● Bureau Veritas (BV)
No
● Det Norske Veritas (DNV)
No
● Germanische Lloyd (GL)
No
● Lloyds Register of Shipping (LRS)
No
● Nippon Kaiji Kyokai (NK)
No
● Polski Rejestr Statkow (PRS)
No
MTBF / at 40 °C
273 y
Further Information / Internet Links
Internet-Link
● to website: Selector SIMATIC NET SELECTION TOOL
http://www.siemens.com/snst
● to website: Industrial communication
http://www.siemens.com/simatic-net
● to website: Information and Download Center
http://www.siemens.com/automation/net/catalog
● to website: Image database
http://automation.siemens.com/bilddb
● to website: CAx Download Manager
http://www.siemens.com/cax
● to website: Industry Online Support
http://support.automation.siemens.com
Security information
Security information
Siemens provides products and solutions with industrial security functions that support the secure operation of plants, solutions, machines, equipment and/or networks. They are important components in a holistic industrial security concept. With this in mind, Siemens’ products and solutions undergo continuous development. Siemens recommends strongly that you regularly check for product updates. For the secure operation of Siemens products and solutions, it is necessary to take suitable preventive action (e.g. cell protection concept) and integrate each component into a holistic, state-of-the-art industrial security concept. Third-party products that may be in use should also be considered. For more information about industrial security, visit http://www.siemens.com/industrialsecurity. To stay informed about product updates as they occur, sign up for a product-specific newsletter. For more information, visit http://support.automation.siemens.com. (V3.4)
