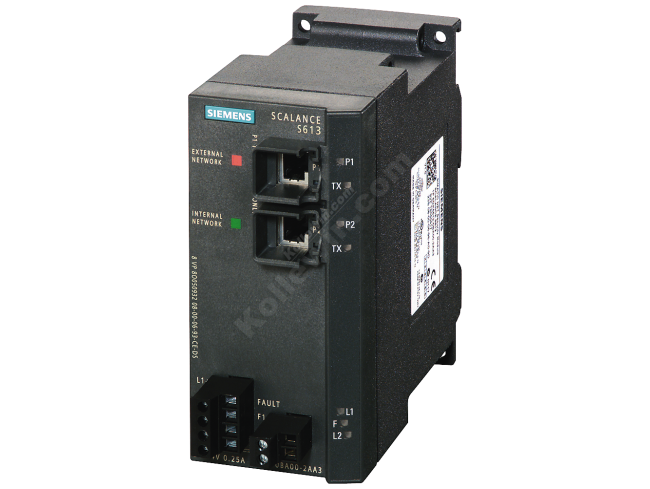

6GK5613-0BA00-2AA3 SCALANCE S613

6GK5613-0BA00-2AA3 SCALANCE S613

Product Code: 6GK5613-0BA00-2AA3

Availability: In Stock

Price: $1,157.65
Qty:
Add to Wish List
Add to Compare
Artikelnummer 6GK5613-0BA00-2AA3
Product type designation SCALANCE S613
SCALANCE S 613 MODULE, FOR PROTECTION OF DEVICES AND NETWORKS IN AUTOMATION AND PROTECTION OF INDUSTRIAL COMMUNICATION VIA VPN (MAX. 64 UNITS) AND FIREWALL
Transmission rate
Transfer rate 10 Mbit/s, 100 Mbit/s
Interfaces
Number of electrical/optical connections / for network components or terminal equipment / maximum 2
Number of electrical connections
● for internal network 1
● for external network 1
● for signaling contact 1
● for power supply 1
● for redundant voltage supply 1
Design of the electrical connection
● for internal network RJ45 port
● for external network RJ45 port
● for signaling contact 2-pole terminal block
● for power supply 4-pole terminal block
design of the removable storage / C-PLUG Yes
Signal-Inputs/outputs
Operating voltage / of the signaling contacts / for DC / Rated value 24 V
Operating current / of the signaling contacts / for DC / maximum 0.1 A
Supply voltage, current consumption, power loss
Supply voltage / external 24 V
Supply voltage / external 20.4 ... 28.8 V
Type of voltage / of the supply voltage DC
Consumed current / maximum 0.25 A
Product component / fusing at power supply input Yes
Fuse protection type / at input for supply voltage Non-replaceable melting fuse (F 3 A / 32 V)
Active power loss
● for DC / at 24 V / typical 3.84 W
Permitted ambient conditions
Ambient temperature
● during operation -20 ... +70 °C
● during storage -40 ... +80 °C
● during transport -40 ... +80 °C
Relative humidity / at 25 °C / without condensation / during operation / maximum 95 %
Protection class IP IP30

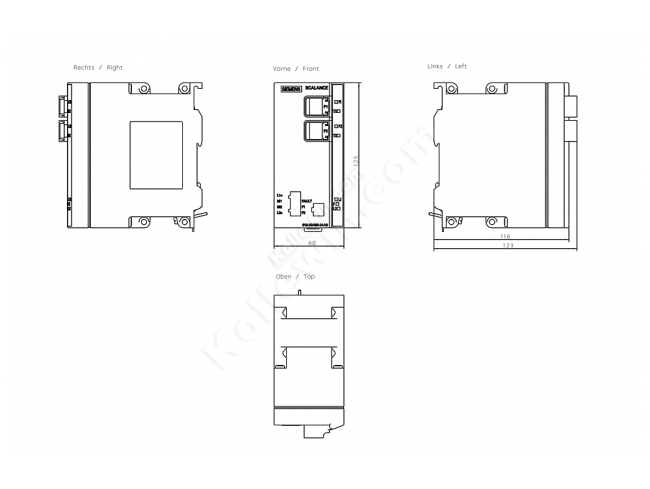

Design, dimensions and weight
Design compact
Width 60 mm
Height 125 mm
Depth 124 mm
Net weight 0.78 kg
Mounting type Screw mounting on horizontal and vertical surfaces
Mounting type
● 35 mm DIN rail mounting Yes
● S7-300 rail mounting Yes
● wall mounting Yes
Product functions / management, configuration
Product function / symbolic names for IP addresses Yes
Type of configuration SCT: Security Configuration Tool (included in scope of delivery)
Product functions / Diagnosis
Product function
● SysLog Yes
● Packet Filter Log Yes
● Audit Log Yes
● System log Yes
Product functions / DHCP
Product function / DHCP server - internal network Yes
Product functions / Routing
Product function / Static IP routing Yes
Product functions / Security
Firewall version stateful inspection
Product function / with VPN connection IPSec
Type of encryption algorithms / with VPN connection AES-128, 3DES-168, DES-56
Type of authentication procedure / with VPN connection Preshared key (PSK), X.509v3 certificates
Type of hashing algorithms / with VPN connection MD5, SHA-1
Number of possible connections / with VPN connection 128
Number of network nodes / for internal network / with VPN connection
● maximum 64
● Note Limitation only applies in bridge mode. No limitation in routing mode
Product function
● Password protection Yes
● Bandwidth limiting Yes
● NAT/NAPT Yes
Product functions / Time
Product function / pass on time synchronization Yes
Protocol / is supported / NTP Yes
Product component / Hardware real-time clock Yes
Product property / Hardware real-time clock w. battery backup Yes
Standards, specifications, approvals
Standard
● for hazardous zone EN 50021
● for safety / from CSA and UL UL 60950, CSA C22.2 No. 60950
● for emitted interference EN 50081-2 Class A
● for interference immunity EN 50082-2
Certificate of suitability AS/NZS 2064 (Class A), EN 61000-6-2, EN 61000-6-4
Certificate of suitability
● CE marking Yes
● C-Tick Yes
Marine classification association
● American Bureau of Shipping Europe Ltd. (ABS) Yes
● Bureau Veritas (BV) Yes
● Det Norske Veritas (DNV) Yes
● Germanische Lloyd (GL) Yes
● Lloyds Register of Shipping (LRS) Yes
● Nippon Kaiji Kyokai (NK) Yes
● Polski Rejestr Statkow (PRS) Yes
Accessories
Product expansion / optional / C-PLUG Yes
Further Information / Internet Links
Internet-Link
● to website: Selector SIMATIC NET SELECTION TOOL http://www.siemens.com/snst
● to website: Industrial communication http://www.siemens.com/simatic-net
● to website: Information and Download Center http://www.siemens.com/automation/net/catalog
● to website: Image database http://automation.siemens.com/bilddb
● to website: CAx Download Manager http://www.siemens.com/cax
● to website: Industry Online Support http://support.automation.siemens.com
last modified: 23.10.2014
Date
31.10.2014		 Changes preserved
© Copyright Siemens AG 2014
