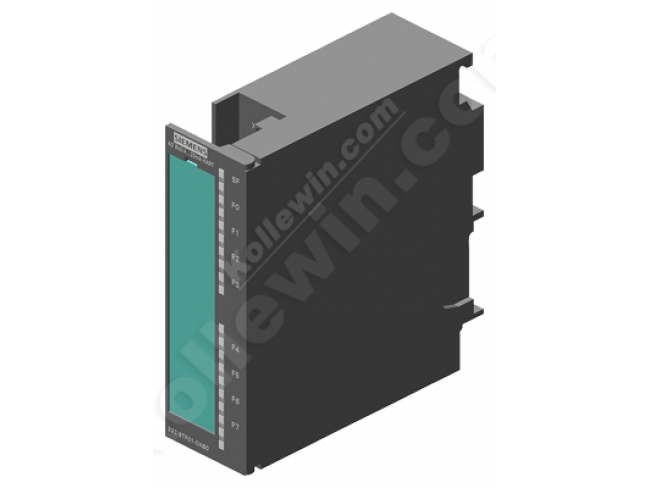

6ES7332-8TF01-0AB0 SM332, 8AO, 0/4 - 20MA HART

6ES7332-8TF01-0AB0 SM332, 8AO, 0/4 - 20MA HART

Product Code: 6ES7332-8TF01-0AB0

Availability: In Stock

Price: $678.15
Qty:
Add to Wish List
Add to Compare


Artikelnummer 6ES7332-8TF01-0AB0
SIMATIC DP, HART ANALOG OUTPUT SM 332, 8AO, 0/4 - 20MA HART, FOR ET200M WITH IM153-2, 20 PIN FEATURES: FW UPDATE, HART SECONDARY VARIABLES, REDUNDANCY, LOCAL DIAGNOSTIC BUFFER WITH TIMESTAMP,
Supply voltage
Load voltage L+
● Rated value (DC) 24 V
● Reverse polarity protection Yes
Input current
from load voltage L+ (without load), max. 350 mA
from backplane bus 5 V DC, max. 110 mA
Power loss
Power loss, typ. 6 W
Analog outputs
Number of analog outputs 8
Current output, no-load voltage, max. 24 V
Output ranges, current
● 0 to 20 mA Yes
● -20 to +20 mA No
● 4 to 20 mA Yes
Connection of actuators
● for current output two-wire connection Yes
Load impedance (in rated range of output)
● with current outputs, max. 750 Ω
● with current outputs, inductive load, max. 10 mH
Destruction limits against externally applied voltages and currents
● Voltages at the outputs towards MANA +60/-0.5 V
Cable length
● Cable length, shielded, max. 800 m
Analog value generation
Integration and conversion time/resolution per channel
● Resolution with overrange (bit including sign), max. 16 bit
Settling time
● for resistive load 0.1 ms
● for inductive load 0.5 ms
Errors/accuracies
Output ripple (based on output area, bandwidth 0 to 50 kHz), (+/-) 0.02 %
Linearity error (relative to output range), (+/-) 0.01 %
Temperature error (relative to output range), (+/-) 0.002 %/K
Crosstalk between the outputs, min. 70 dB
Repeat accuracy in steady state at 25 °C (relative to output area), (+/-) 0.05 %
Operational error limit in overall temperature range
● Current, relative to output area, (+/-) 0.2 %
Basic error limit (operational limit at 25 °C)
● Current, relative to output area, (+/-) 0.1 %
Interrupts/diagnostics/status information
Substitute values connectable Yes
Alarms
● Diagnostic alarm Yes
Diagnostic messages
● Diagnostic functions Yes
● Diagnostic information readable Yes
● Diagnostics Yes
Diagnostics indication LED
● Group error SF (red) Yes
Galvanic isolation
Galvanic isolation analog outputs
● between the channels No
● between the channels and the backplane bus Yes
● between the channels and the load voltage L+ Yes
Isolation
Isolation tested with 500 V DC
Connection method
required front connector 20-pin
Dimensions
Width 40 mm
Height 125 mm
Depth 117 mm
Weights
Weight, approx. 220 g
last modified: 21.08.2014
