6ES7332-7ND02-0AB0 SIMATIC S7,SM 332 ANALOG OUTPUT

6ES7332-7ND02-0AB0 SIMATIC S7,SM 332 ANALOG OUTPUT

Product Code: 6ES7332-7ND02-0AB0

Availability: In Stock

Price: $389.08
Qty:
Add to Wish List
Add to Compare


Artikelnummer 6ES7332-7ND02-0AB0

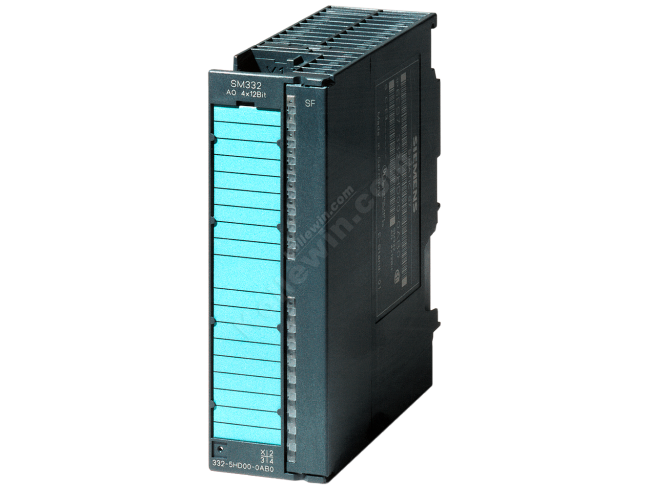

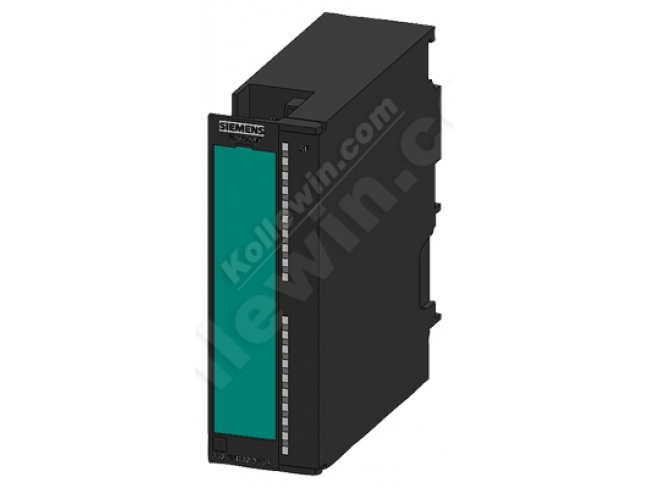

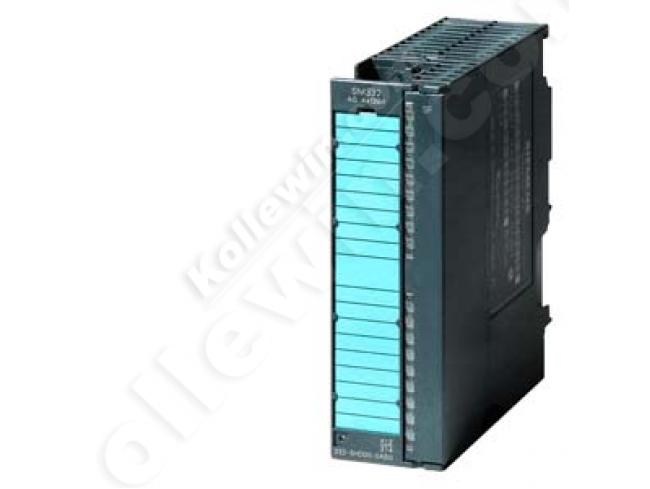

SIMATIC S7,SM 332 ANALOG OUTPUT CHANNEL TO CHANNEL ISOLATION, 4 AO, 16 BIT RESOLUTION, 0-10V, 1-5V, +/-10V, +/-20MA, 0/4 - 20MA, 20 PIN, FIT FOR ISOCHRONE MODE IMPROVED DP-CYCLE TIME FOR ISOCHRONE MODE
Supply voltage
Load voltage L+
● Rated value (DC) 24 V
Input current
from load voltage L+ (without load), max. 290 mA
from backplane bus 5 V DC, max. 120 mA
Power losses
Power loss, typ. 3 W
Analog outputs
Number of analog outputs 4; Isochronous mode
Voltage output, short-circuit protection Yes
Voltage output, short-circuit current, max. 40 mA
Current output, no-load voltage, max. 18 V
Output ranges, voltage
● 0 to 10 V Yes
● 1 to 5 V Yes
● -10 to +10 V Yes
Output ranges, current
● 0 to 20 mA Yes
● -20 to +20 mA Yes
● 4 to 20 mA Yes
Load impedance (in rated range of output)
● with voltage outputs, min. 1 kΩ
● with voltage outputs, capacitive load, max. 1 µF
● with current outputs, max. 500 Ω
● with current outputs, inductive load, max. 1 mH
Cable length
● Cable length, shielded, max. 200 m
Analog value creation
Integration and conversion time/resolution per channel
● Resolution with overrange (bit including sign), max. 16 bit
● Conversion time (per channel) 200 µs; in isochronous mode 640 µs
Settling time
● for resistive load 0.2 ms
● for capacitive load 3.3 ms
● for inductive load 0.5 ms
Errors/accuracies
Operational limit in overall temperature range
● Voltage, relative to output area, (+/-) 0.12 %
● Current, relative to output area, (+/-) 0.18 %
Basic error limit (operational limit at 25 °C)
● Voltage, relative to output area, (+/-) 0.02 %
● Current, relative to output area, (+/-) 0.02 %
Interrupts/diagnostics/status information
Substitute values connectable Yes; Parameterizable
Alarms
● Diagnostic alarm Yes; Parameterizable
Diagnostic messages
● Diagnostic information readable Yes
● Diagnostics Yes; Diagnostic information readable
Diagnostics indication LED
● Group error SF (red) Yes
Galvanic isolation
Galvanic isolation analog outputs
● between the channels and the backplane bus Yes
Isolation
Isolation checked with 1500 V DC
Connection method
required front connector 20-pin

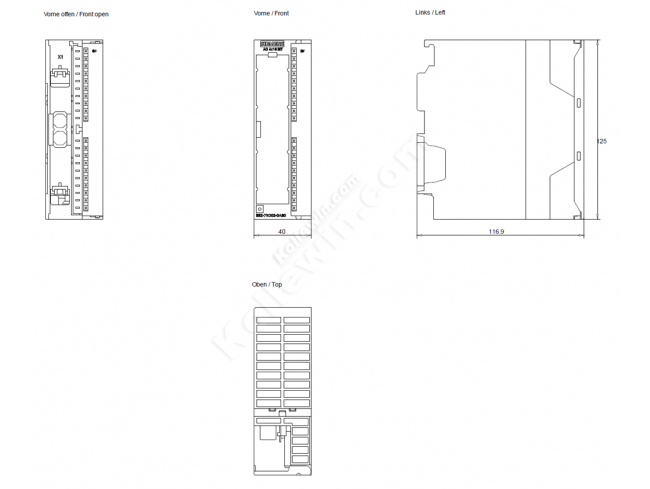

Dimensions
Width 40 mm
Height 125 mm
Depth 120 mm
Weights
Weight, approx. 220 g
