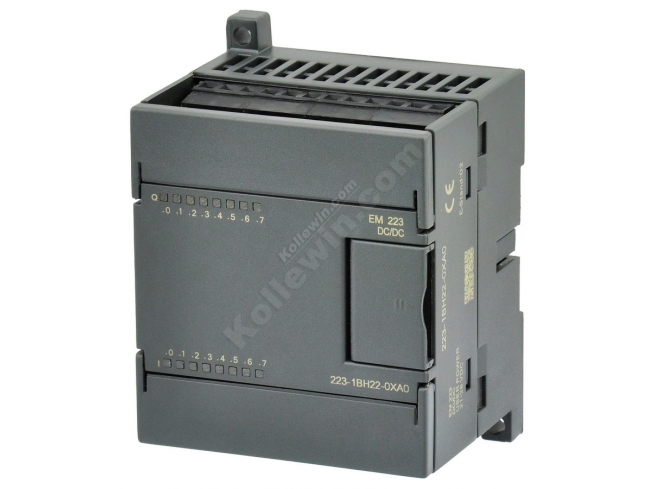

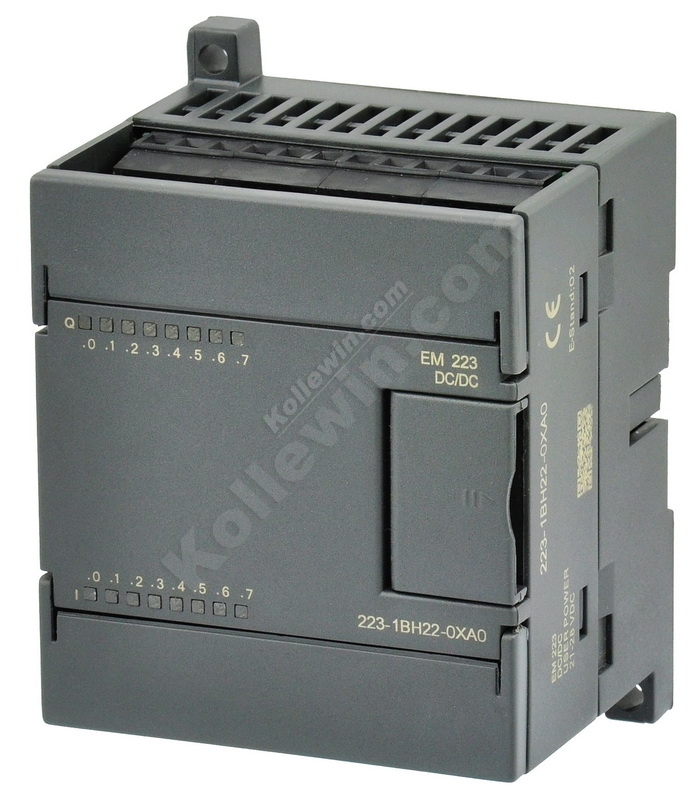

223-1BH22-XAA0

Product Code: 223-1BH22-XAA0

Availability: In Stock

Price: $78.00



Model

EM223 8 inputs/outputs

Product  Description

8DI,24VDC/8DO,24VDC

Transistor;

Optical isolation with high immunity

From bus current consumption

80mA

Power loss

3W

Input Features



Number of digital inputs

8

Input voltage

24V DC,4mA

Logic 0 signal

0~5V DC

Logic 1 signal

15~30V DC

Maximum Input Delay Time

4.5ms

Signal input type·

PNP/NPN

Optical isolation(Galvanic) (field to logic)

500 VAC for 1 minute

Cable Length (Shielded)

500m

Cable Length (unshielded)

300m

output Features



Number of digital outputs

8

Output type

Transistor

Isolation

Optical coupler

Output voltage

24V DC

Output voltage range

20.4~28.8V DC

Output Current

0.75A

Lamp load

5W

Lifetime mechanical

/

Lifetime contacts(Rated load voltage

/

Cable Length (Shielded)

500m

Cable Length (unshielded)

150m

Dimensions(W x H x D)(mm)

71.2×80×62

Order Number

 223-1BH22-0XA0
